Suprema BioEntry W2 Fingerprint Terminal


Suprema BioEntry W2 Fingerprint Terminal

Specifically designed for access control in all weather conditions, the BioEntry W2 is suitable for internal or external applications with its IP67 rated casing for water and dust ingress protection.

Because it’s from Suprema the BioEntry W2 boast outstanding fingerprint recognition technology. Incorporating fake fingerprint recognition, the reader using both infra-red and white light to determine the qualities of the fingerprint being presented to outfox criminal intent. This makes it highly desirable for high-security installations on the main entrances to your business where you need confidence in performance.

The BioEntry W2 is built to IK09 standards for high vandal resistance – preventing breakage when hit with up to 10 joules of force.

The rugged, robust nature of the BioEntry W2 means that it does not incorporate a keypad or screen. Consequently, fingerprint enrolment is achieved via Suprema’s BioStar 2 software on the BioEntry W2 device, on other terminals within the range or on a BioMini USB fingerprint reader which is then transferred to the BioEntry W2. Biometric fingerprint information can be enrolled directly onto an RFID card or fob, thereby eliminating any biometric information being held in the terminal or in a database. This can be a suitable solution where GDPR concerns run high.

A variety of verification options can be configured to suit the needs of your business including fingerprint only or finger pin. The BioEntry W2 also boast an enormous capacity, storing up to 500,000 fingerprints (with two templates per finger) and up to 1 million text logs.

The BioEntry W2 supports Power over Ethernet (PoE) making it suitable for awkward installations where running power cables is costly and time-consuming.

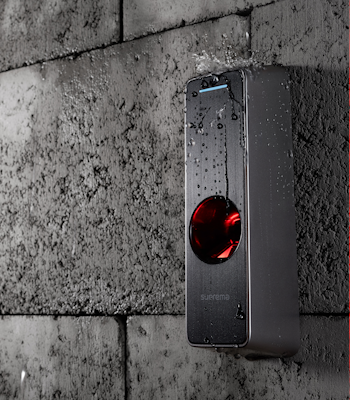

Egress BioEntry W2 Wet

Key Benefits

Robust IK09 rated resin housing for vandal resistance

Suitable for exterior installation and challenging environments

Highly secure fingerprint recognition technology

Huge storage capacity suitable for large organisations

PoE support

Integrated RFID reader – multiple card/fob types supported

Clear sound and LED indications

High precision optical fingerprint sensor

Suprema BioEntry W2 Fingerprint Terminal – Technical Specification

Sensor type: Optical Sensor (OP5)

Multi-sound buzzer

1.2 GHz Quad Core CPU

Operating temperature of -20˚C to +50˚C

2GB Flash + 256 MB RAM Memory

Operating humidity of 0% to 80%

500,000 (1:1), 100,000(1:N) Max Users

Size: 50mm x 172mm x 43.5mm (w x h x d)

1,000,000(1:1), 200,000(1:N), [1 finger=2 templates] Max Templates

Power: 12V DC

1,000,000 Max Text Logs

1 Relay

IK09 impact protection

Network Interface: TCP/IP, RS485, Weigand

IP67 ingress protection

RFID options: 125kHz EM & 13.56MHz MIFARE, MIFARE Plus

Multi-colour LED
